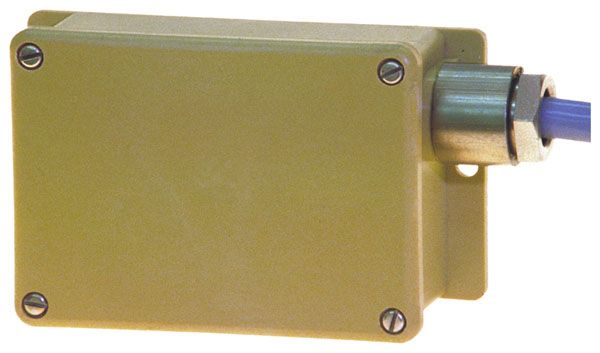

Position alarm/transmitter
XAP
Caratteristiche
-
Additional equipment for AK41…43 P pneumatic actuators and AV43, AVP 142 and AVP 242…244 pneumatic valve actuators
-
Position feedback when monitoring
-
Auxiliary contact unit with two contacts
-
The relevant contacts are switched depending on whether the actuator spindle is extended or retracted
-
Potentiometer, the resistance of which changes in accordance with the actuating force
Schede tecniche
Istruzioni di montaggio
Opuscoli
XAP: Position monitor/indicator
pdf : 86 KB
pdf
XAP1,2 (AK42...43P)
pdf : 122 KB
pdf
XAP1,2 (AV42...45P)
pdf : 191 KB
pdf
XAP1, XAP2
pdf : 835 KB
pdf
Pneumatic room pressure control
pdf : 361 KB
pdf
