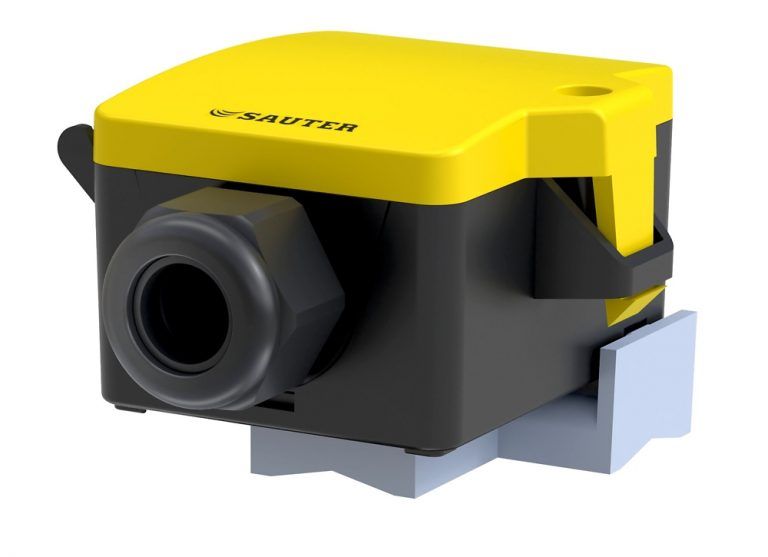

Clamp-on temperature sensor
EGT 311
How energy efficiency is improved
Precise and reliable data acquisition for optimised regulation of HVAC installations
Caratteristiche
-
Passive temperature measurement on pipes
-
Suitable for HVAC building systems with media temperature up to 120 °C
-
Cable inlet via a removable cable gland
-
Can be mounted parallel or perpendicular to the pipe
-
Retaining strap for pipes up to 110 mm and heat-conducting paste included
-
Sensor with protection against corrosion and humidity
-
Can be used in damp and dusty environments (type of protection IP65)
Schede tecniche
Istruzioni di montaggio
Altri documenti
Opuscoli
EGT 311: Clamp-on temperature sensor
pdf : 610 KB
pdf
MV EGT311F103
pdf : 850 KB
pdf
Richtlinie Fühlermontage
pdf : 9 MB
pdf
Flyer 2-Point Controllers and Sensors
pdf : 1 MB
pdf
