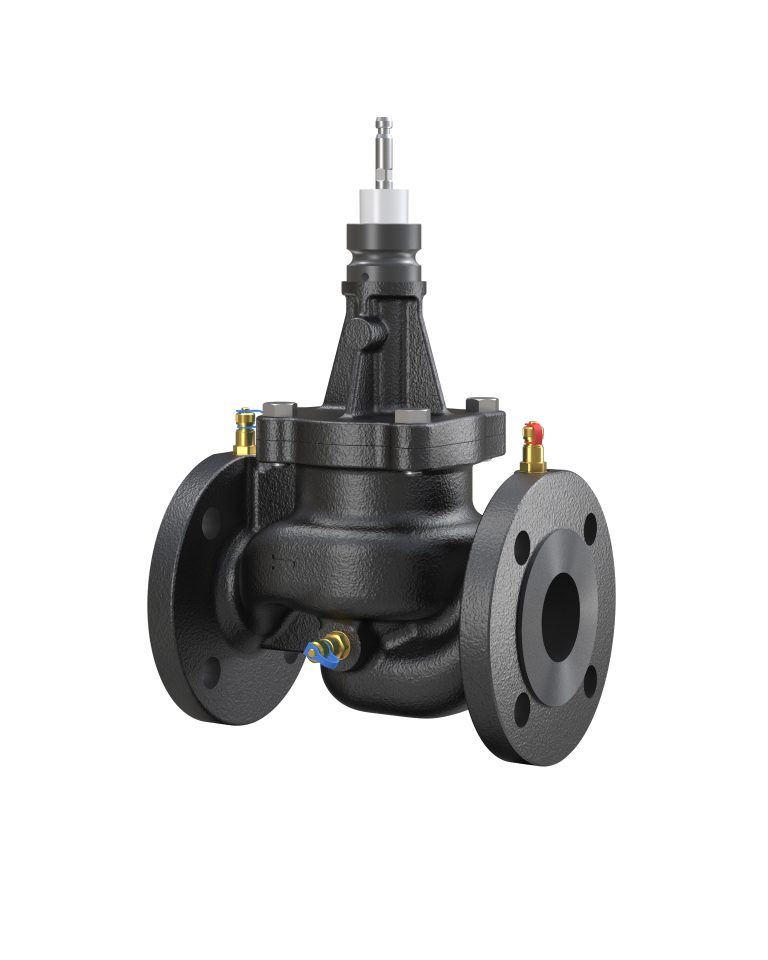

2-way regulating valve for dynamic hydronic balancing, PN 16, Valveco flange
VDL 050…300
How energy efficiency is improved
Automatic dynamic hydronic balancing with the SAUTER Valveco flanged regulating valve provides a correct supply to the downstream consumers and a reduction of temperature variations in heating and cooling systems, so that energy is used more accurately and more efficiently
Caratteristiche
-
Regulating valve (PICV) with three functions:
-
Regulating
-
Infinitely variable preset for maximum volume flow
-
Automatic hydronic balancing
-
-
Control of low and mean temperature domestic hot water, cooled water, water with anti-freeze in closed circuits
-
Volume flow range: 2.5…600 m3/h
-
All types with three pressure measurement nipples for precise calibration and control
-
The valve is closed when the spindle is moved in
-
Closing procedure against the pressure
-
Simple connection of VDL 050…080 to AVM 215 and VDL 100…200 to AVM 234 (VDL 250…300 with adapter)
-
Regulating valve with flange connection, flat-sealing
-
Differential pressure across the control unit is kept constant
-
Calculation of valve authority not required (= 1.0)
Schede tecniche
Istruzioni di montaggio
Altri documenti
Opuscoli
VDL 050...300: 2-way control valve Valveco Flange
pdf : 2 MB
pdf
VDL
pdf : 3 MB
pdf
Poster valves and actuators - 2023
pdf : 1 MB
pdf
SAUTER eValveco - E
pdf : 2 MB
pdf
Valves and actuators
pdf : 9 MB
pdf
