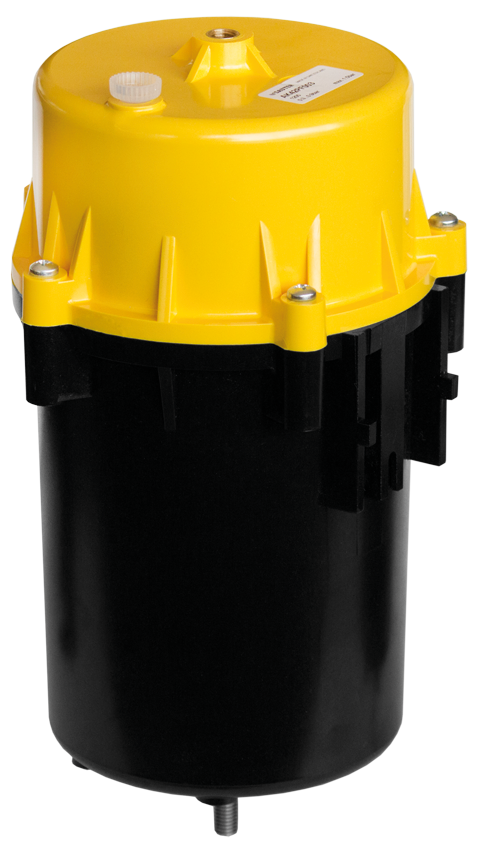

Pneumatic actuator
AK 41...43 P
How energy efficiency is improved
Precise damper activation with only the slightest air requirement
Caratteristiche
-
ATEX-certified for use in areas of zone 1 where there is a risk of explosions
-
Compliant with EN 13463-1 and EN 1127-1 (Ex II 2 G T6) with actuators of the AK 41 P and AK 42 P series
-
Rolling diaphragms made of silicone; drive spindle in stainless steel with M8 male thread
-
Plug nipple for connecting plastic tubing with an internal diameter of 4 mm (AK41)
-
Compressed-air connection with Rp⅛” female thread (AK42, 43)
