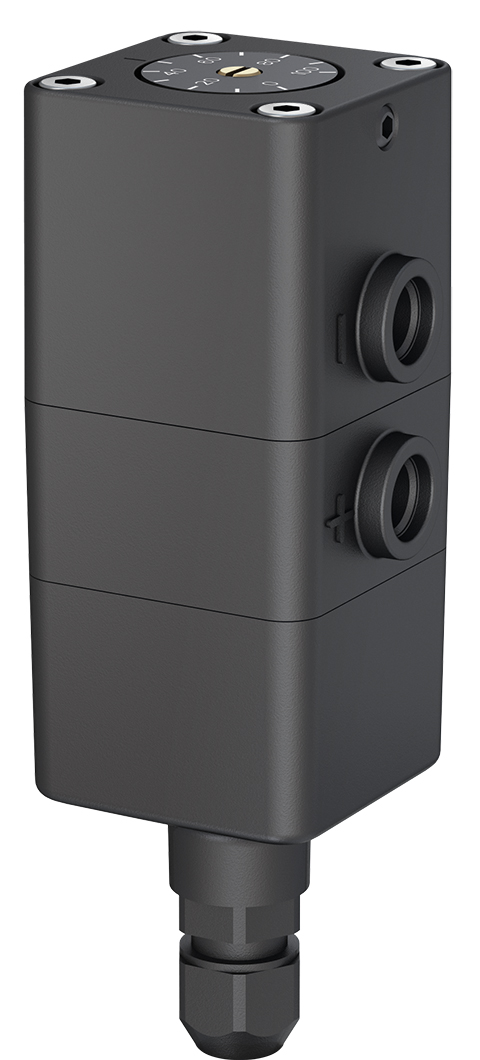

Differential pressure switch
DSD
How energy efficiency is improved
Control and monitoring of differential pressure according to needs and with no auxiliary energy
Caratteristiche
-
For monitoring the differential pressure in liquids, gases and vapours
-
For use in, for example, filter technology and plant and machine engineering
-
Differential pressure setting ranges from 0.06 to 6 bar
-
Up to 80 °C media temperature
-
High repeat precision
-
High overload protection
-
Can be used in all neutral media, such as heating water, neutral gases, oils etc.
-
Long serviceable life
-
With fitting bracket
Schede tecniche
Istruzioni di montaggio
Opuscoli
DSD: Differential pressure switch
pdf : 1 MB
pdf
DSD: Differenzdruckschalter
pdf : 515 KB
pdf
Druckschalter, Druckwächter, Druckbegrenzer
pdf : 463 KB
pdf
Flyer 2-Point Controllers and Sensors
pdf : 1 MB
pdf
